Design Goals

This is a spinning magnet to seperate magnetics from concentrate. Similar to a Rollie Pollie, but DIY

• Under the pan, seperation of magnetics (dry seperation, indirect)
• Pour concentrate past magnet (dry seperation)
• Removal of existing trough (poor use case in the original design)

I really just wanted the motor mount design and will be redesigning the covering over the magnet.

Build Log

05-01-2026

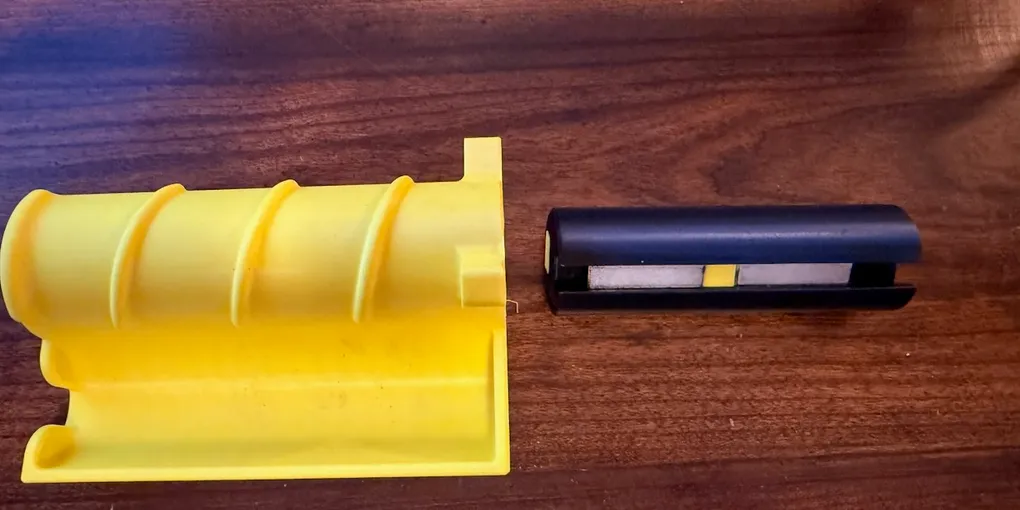

Starting with a design I purchased (3D printed parts and basic design, but with heavy modification). The big issue is that there is a roller bearing on one end only. The shaft vibrates tremendously if not mounted perfectly straight. The design needs roller bearings on both ends of the roller assembly.

09-17-2026

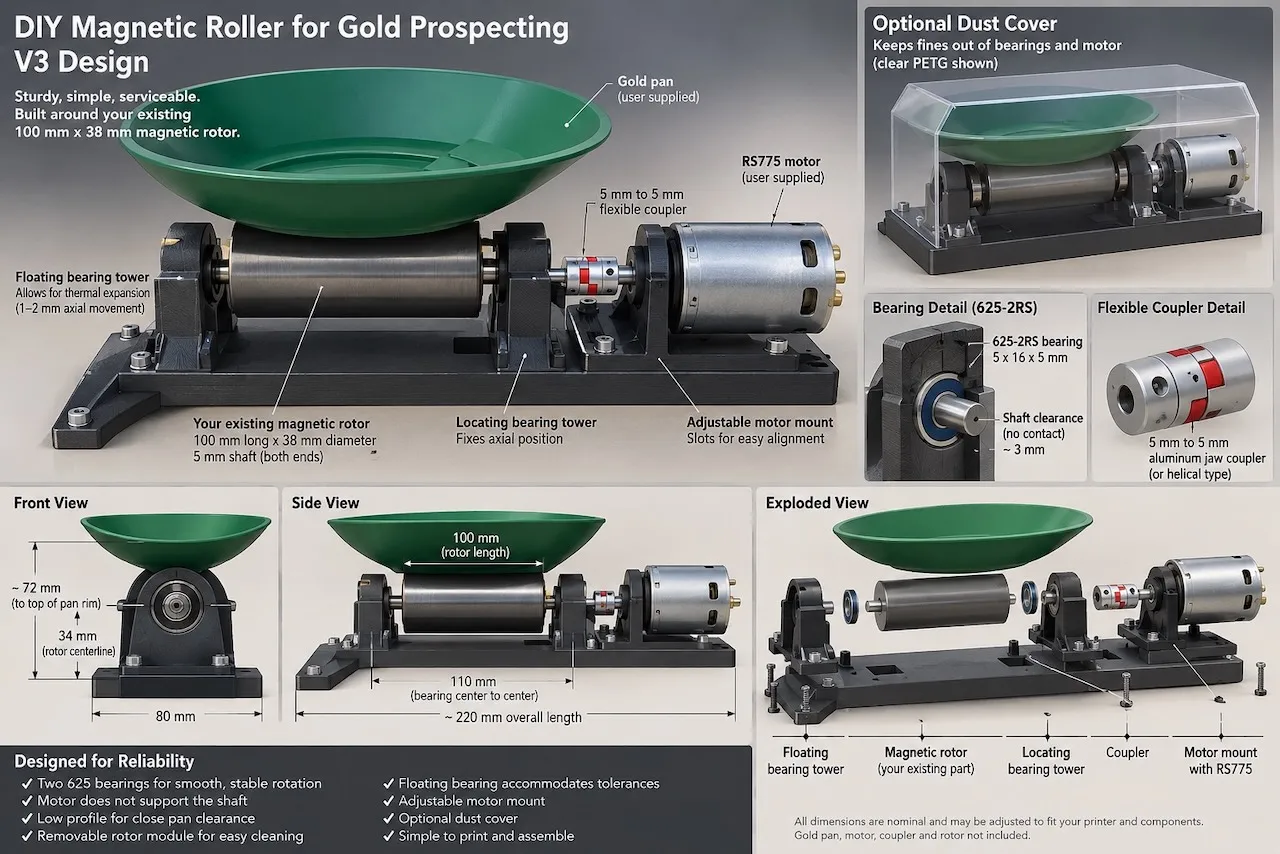

Here is the new design concept. Starting with an open design so I can understand how quiet the unit can be.

Video link

Mining Magnets
